下面講下如何將一些數據log下來，可以基于機器人本身的CWRITE指令來實現此功能：

(1).Log文件自動以時間命名；

(2).每隔10秒log一次；

(3).每條信息獨立一行；

具體實現過程如下：

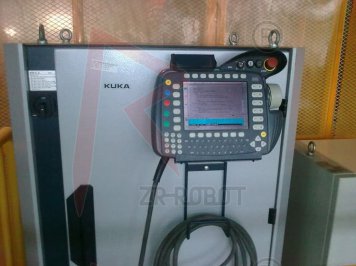

1.在SmartPad上創建一個xxx.src,如下：







		DEF Write_File( )



		DECL INT handle



		DECL STATE_T STAT



		DECL MODUS_T MODE



		DECL CHAR AxisPos[256]



		DECL CHAR ProState[256]



		DECL CHAR ErrorID[256]



		DECL CHAR FILENAME[256]



		DECL INT  Offset



		DECL BOOL bok



		DECL char LF



		MODE = #SYNC



		HANDLE = 0



		OFFSET=0



		bOK=STRCLEAR(AXISPos[])



		BOK=STRCLEAR(Prostate[])



		BOK=STRCLEAR(ERRORID[])



		LF = 10







		SWRITE(AxisPos[],STAT,Offset,"%S:%F|%F|%F|%F|%F|%F","Current Axis Position",$AXIS_ACT.A1,$AXIS_ACT.A2,$AXIS_ACT.A3,$AXIS_ACT.A4,$AXIS_ACT.A5,$AXIS_ACT.A6)



		Offset=0



		SWITCH $PRO_STATE1



		  CASE #P_ACTIVE



		    ProState[]="Program State: RobotProgram is selected and running!"



		    CASE #P_FREE



		    ProState[]="Program State: RobotProgram is deselected!"



		    CASE #P_END



		    ProState[]="Program State: RobotProgram is selected and the end of program has been reached!"



		    CASE #P_RESET



		    ProState[]="Program State: RobotProgram is selected and has been stopped and reset!"



		    CASE #P_STOP



		    ProState[]="Program State: RobotProgram is selected and has been stopped!"



		ENDSWITCH



		SWRITE(ERRORID[],STAT,offset,"ErrorINFO: ERRORID-%D|LINENR-%D|PROG-%S|SUB-%S",$ERR.NUMBER,$ERR.LINE_NR,$ERR.MODULE[],$ERR.UP_NAME[])



		offset=0



		IF STRCLEAR(FILENAME[])THEN



		SWRITE(FILENAME[],STAT,offset,"%D%D%D-%Dh%Dm%Ds.txt",($DATE.year),($DATE.MONTH),($DATE.DAY),($DATE.HOUR),($DATE.MIN),($DATE.SEC))



		ENDIF



		WAIT FOR TIMER_LIMIT(10)



		CWRITE($FCT_CALL,STAT,MODE, "krl_fopen",FILENAME[], "w", HANDLE)



		CWRITE($FCT_CALL, STAT, MODE, "krl_fputs", HANDLE, AxisPos[])



		CWRITE($FCT_CALL, STAT, MODE, "krl_fputc", HANDLE, LF)



		CWRITE($FCT_CALL, STAT, MODE, "krl_fputs", HANDLE, PROSTATE[])



		CWRITE($FCT_CALL, STAT, MODE, "krl_fputc", HANDLE, LF)



		CWRITE($FCT_CALL, STAT, MODE, "krl_fputs", HANDLE, ErrorID[])



		CWRITE($FCT_CALL, STAT, MODE, "krl_fclose", HANDLE)



		END

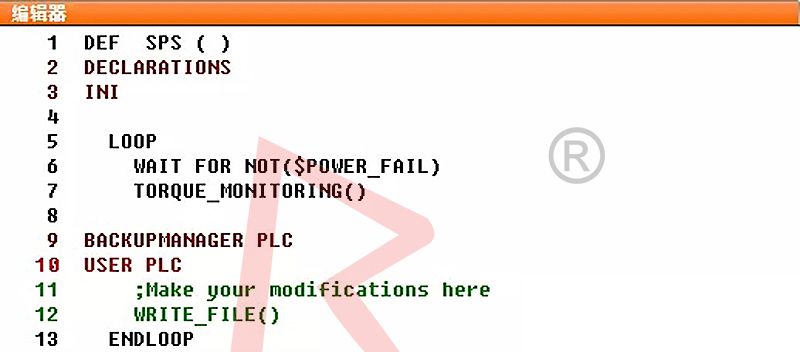

		2.在SPS里調用該程序：

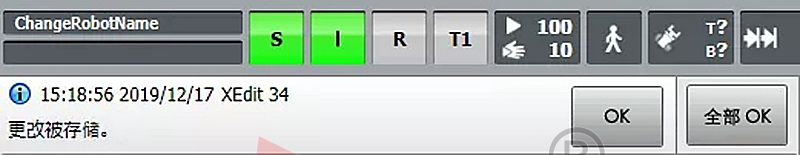

		3.確保SPS運行：

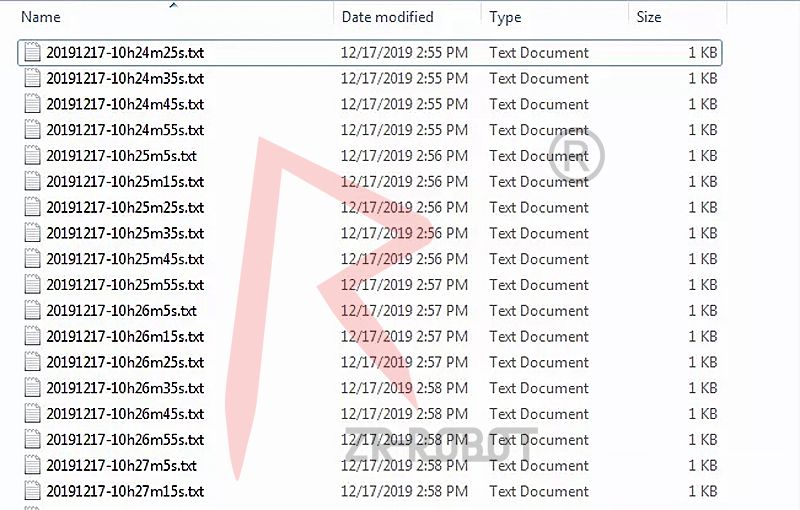

		4.在機器人控制器路徑下C:\KRC\Roboter\Userfiles看生成的log文件：

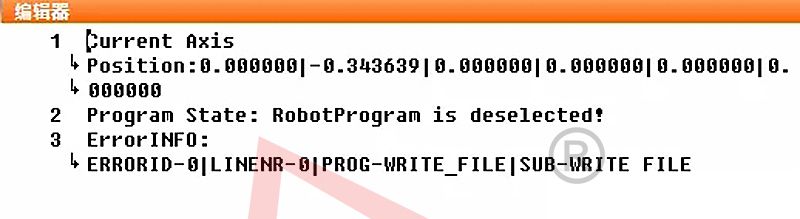

		5.查看具體log文件：
